Deburring Robot Cell QY-Q600

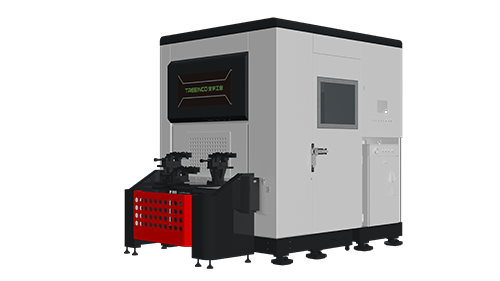

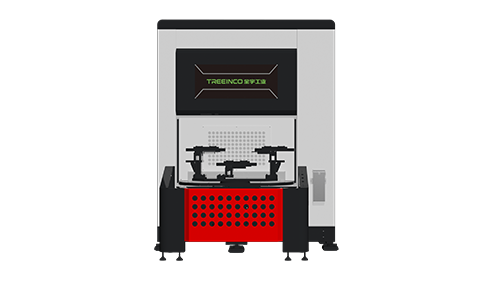

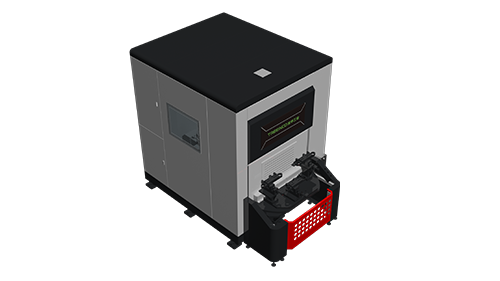

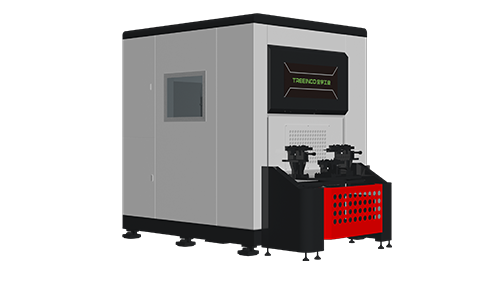

The Deburring Robot Workstation QY-Q600 is a product designed for deburring casting edges.This product uses a general-purpose six-axis industrial robot, with a composite grinding tool mounted at the robot end. Equipped with a 3D vision system and a grinding monitoring system, it enables flexible removal of burrs, flash, and other defects on the edges of small castings. This product features high efficiency, high precision, and high flexibility. Typical applications include housings, metal plates, pipe fittings, burner grates, brackets, and various aluminum alloy die castings.
Show All
share：
Technical Parameters
| Model | QY-D600 |
| Grinding Residual Accuracy | ≤ 0.5 mm |
| Grinding Removal Efficiency | 15 mm/s (risers and gates), 20 mm/s (stubs), 50 mm/s (flash) |
| Workpiece Size | < Φ600 mm × 500 mm |
| Workpiece Weight | ≤ 20 kg |
| Workpiece Material | Cast Iron, Cast Steel, Cast Aluminum |
| Tooling Versatility | Compatible with multiple workpiece models |
| Tooling Clamping Method | Automatic or Manual Clamping |
| Equipment Dimensions | 4200 mm × 2300 mm |
| Equipment Weight | 4 t |
| Robot Body | ABB/KUKA Industrial Robot |
| Number of Robots | 1 unit |
| Robot Axes | 6 axes |
| Robot Payload | 20 kg - 80 kg |
| Robot Repeat Positioning Accuracy | ± 0.1 mm |
| Vision System | 3D Vision System |
| Monitoring System | - |
| Tool System | Flexible Grinding Tool |
| Tool Magazine System | Automatic Tool Magazine (Optional) |
| Information System | Production Information System EMS, Application Programming Interface API |

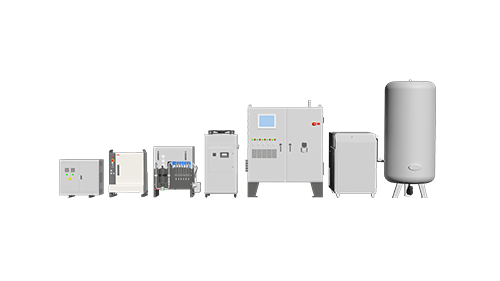

| Cooling System | Cooling Station |
| Hydraulic System | Hydraulic Station |
| Power System | Electrical Control Station |
| Control System | Control Cabinet |
| Dust Removal System | Dust removal interface provided |
